Add a setting

By the end of this you will have a new entry on a settings page, reading and writing a value of your own.

Steps

1. Pick the base class matching your value type: BP_Value_Settings_Bool, _Float, _Integer, _Name, or one of the console-variable variants such as BP_Value_Settings_Integer_Console.
2. Create a Blueprint deriving from it, in your own project content.
3. Set Name and Caption — these become the label and helper text on the row.
4. For a console-variable setting, set the console variable name and the value mapping.
5. Open the settings page the entry belongs on: WBP_Settings_Desktop_Graphics, WBP_Settings_Desktop_Sound or WBP_Settings_Desktop_Gameplay.
6. Add the row widget matching your value type — WBP_SettingItem_Boolean_Toggle, WBP_SettingItem_Float_Slider, WBP_SettingItem_Integer_Selector, WBP_SettingItem_Name_DropDown or WBP_SettingItem_Color_Picker — and place it in the page's vertical box alongside the existing rows.
7. Select the row and set its Settings class to the Blueprint from step 2. This is the step that connects the two: leave it unset and the row has nothing to read from or write to.
8. Optionally set Slot Horizontal Alignment on the row to control how its control sits beside the title and caption.

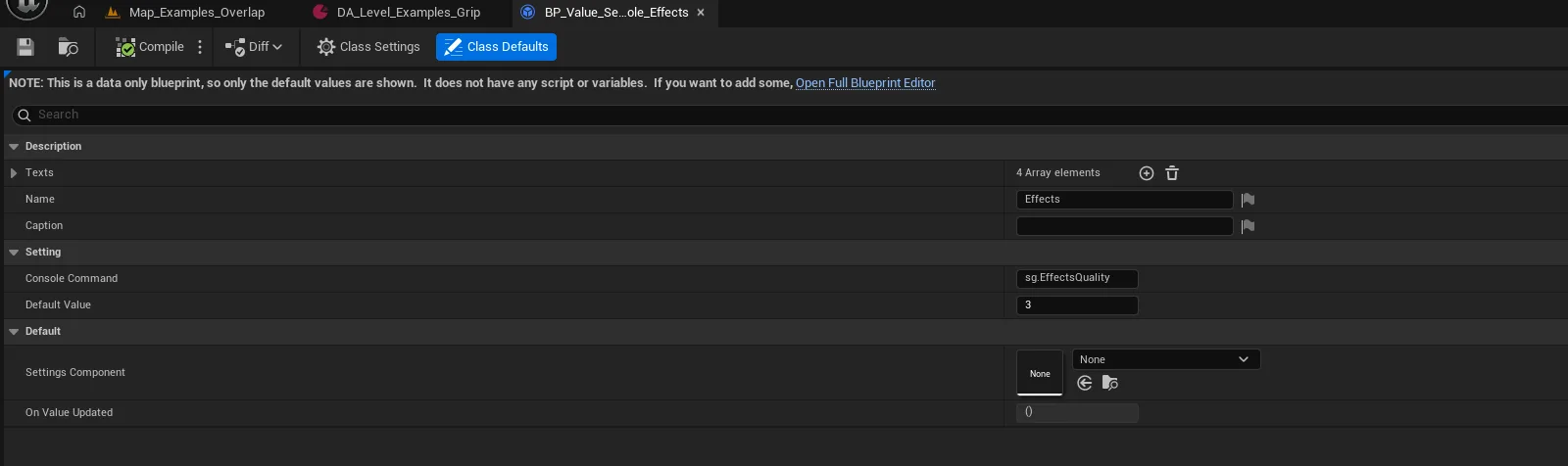

howto_addsetting_01.pngA settings preset asset

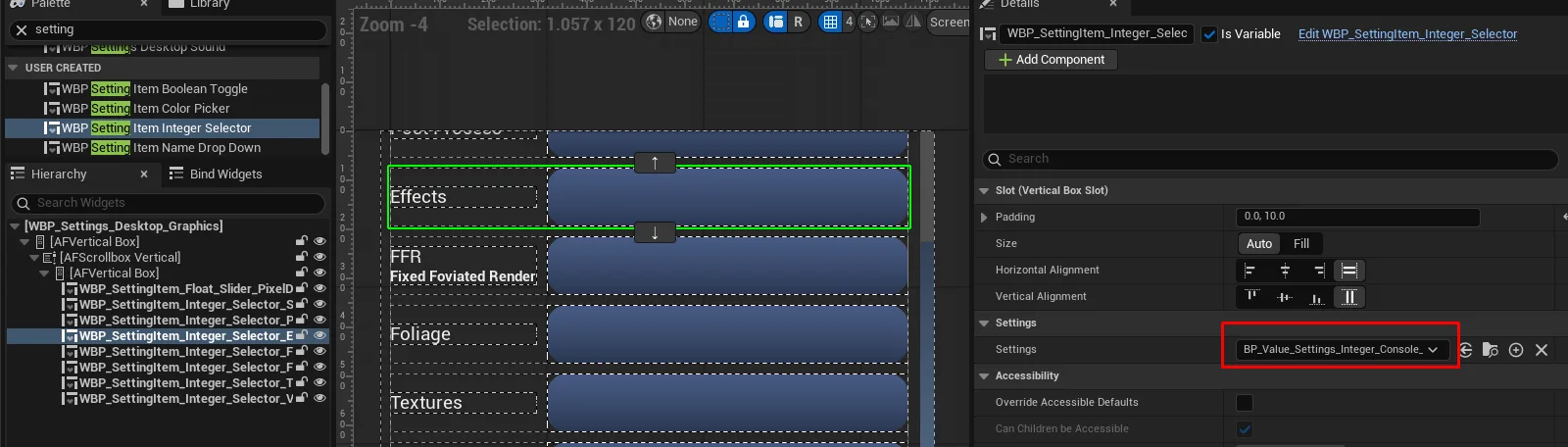

howto_addsetting_02.pngThe row placed on the graphics page with its Settings class picked

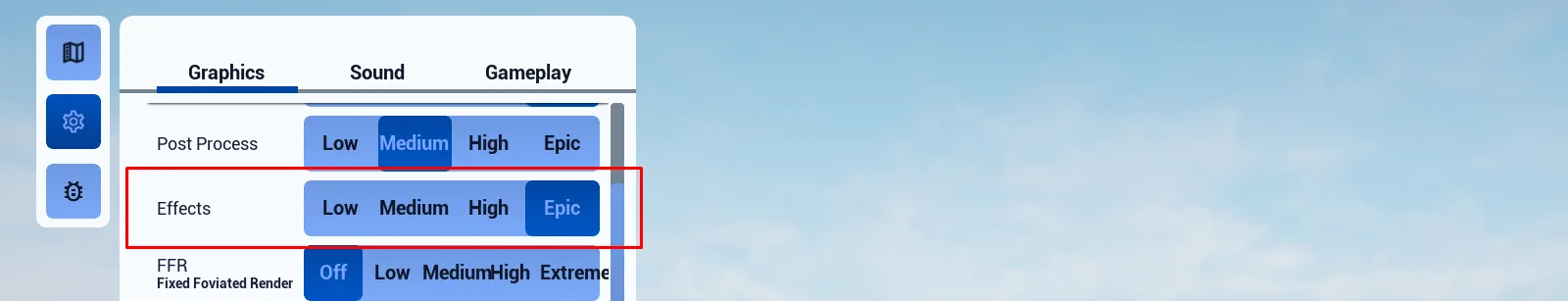

AFM_Settings_result.pngThe new setting in the menu

Notes

There is no separate registration step

The row's Settings class is the registration. BPC_GameState_Settings.getObjectForSettings builds the value object the first time a row asks for that class, runs its Init, and caches it — so two rows pointing at the same class share one object and stay in sync without any wiring.

The component's own Settings map is that runtime cache, not an authoring list. There is nothing to fill in on the game state.

Pick the row subclass yourself

Nothing infers the control from the value type. A boolean needs WBP_SettingItem_Boolean_Toggle, a float needs WBP_SettingItem_Float_Slider, and pairing a float value with a toggle row simply gives you a row that cannot represent its own value.

One set of pages serves both menus

The shipped pages are named for the desktop — WBP_Settings_Desktop_Graphics and its siblings — but both the VR and the desktop menu build themselves from the same Pages list on BPC_Pawn_Menu, so a row you add once appears in both. A new category is more work: it means adding a page widget to WBP_Settings_Desktop and a tab button to switch to it.
